What is a Transformer? An Introduction to Electrical Transformers: The Basics
What is a Transformer
In the world of electrical engineering and power distribution, transformers play a crucial role. These essential devices are responsible for stepping up or stepping down voltage levels, allowing for the efficient transmission of electrical power across various distances and applications. In this article, we will cover the fundamental concepts of transformers, their types, and their applications, providing a basic understanding of these key components.
What is a Transformer?

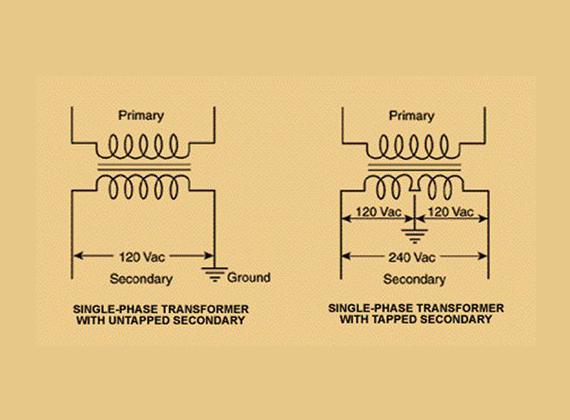

A transformer is an electrical device that transfers electrical energy between two or more circuits through electromagnetic induction. Transformers are typically used to change the voltage level of an alternating current (AC). They consist of two or more coils of wire, known as windings, wrapped around a common core. The primary winding is connected to the input voltage, and the secondary winding delivers the output voltage.
How Does a Transformer Work?
Transformers work on the principle of electromagnetic induction, which is a process where a changing magnetic field creates an electromotive force (EMF) or voltage in a conductor. The basic components of a transformer include:
- Core: The core is typically made of laminated steel sheets, which help to contain and direct the magnetic field.
- Windings: The windings are coils of wire that carry the electrical current. The primary winding receives the input voltage, and the secondary winding provides the output voltage.
- Magnetic Field: When an AC voltage is applied to the primary winding, it creates a changing magnetic field in the core. This changing magnetic field induces a voltage in the secondary winding, transferring electrical energy from the primary to the secondary circuit.
The voltage transformation ratio of a transformer is determined by the ratio of the number of turns in the primary and secondary windings. This ratio allows transformers to either step up or step down voltage levels.
Types of Transformers
- Step-Up Transformer: Increases the voltage from the primary to the secondary winding. Commonly used in power transmission to increase voltage for long-distance power lines.
- Step-Down Transformer: Decreases the voltage from the primary to the secondary winding. Often used to lower the voltage for residential or commercial use.
- Isolation Transformer: Provides electrical isolation between the primary and secondary circuits, protecting equipment from electrical noise and surges.
- Autotransformer: Has a single winding that acts as both the primary and secondary winding. More compact and efficient but lacks electrical isolation.

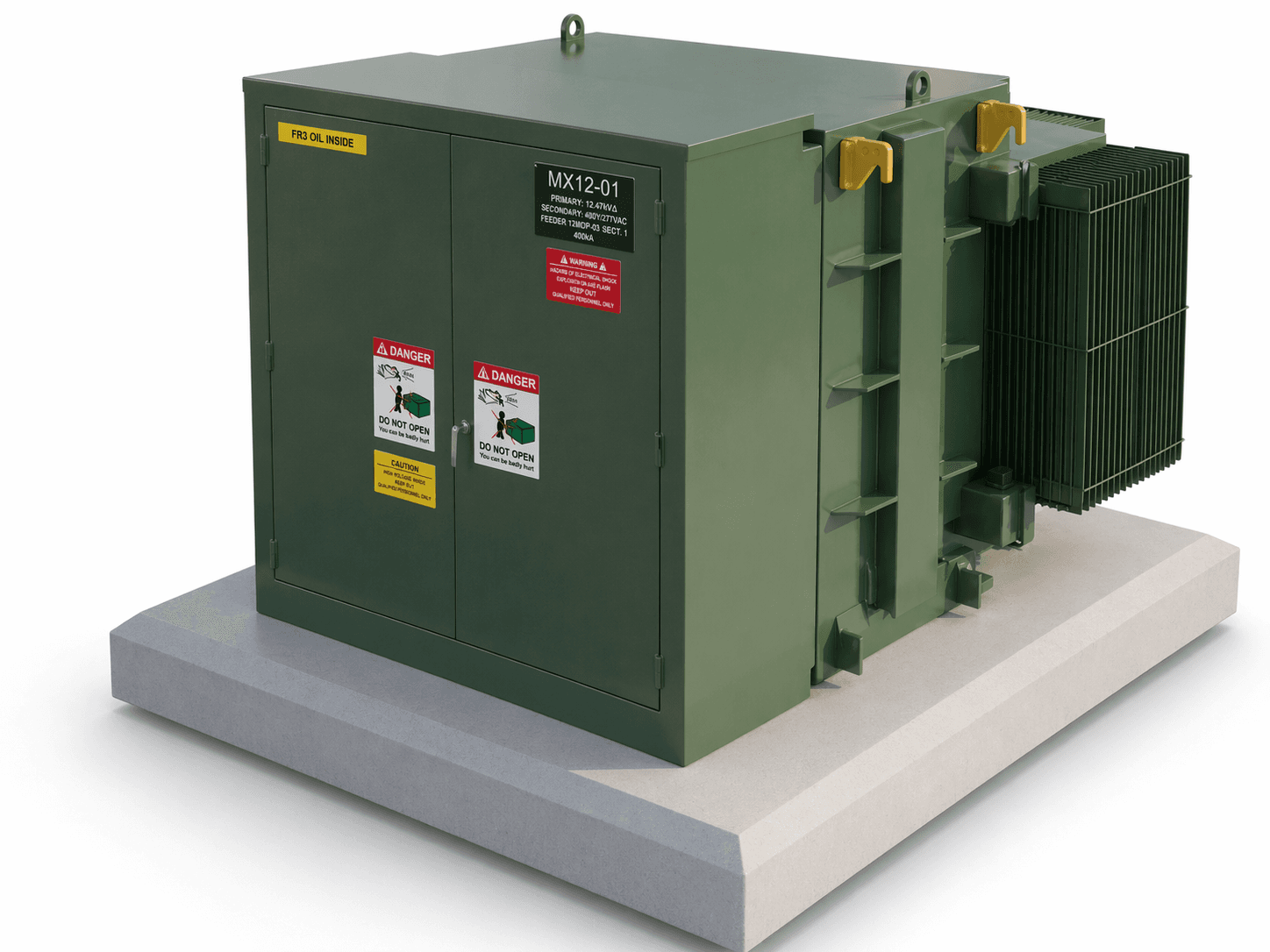

- Distribution Transformer: Used in electrical distribution systems to provide final voltage transformation for end users.
- Power Transformer: Used in power generation and transmission to handle high voltage levels and large amounts of power.
